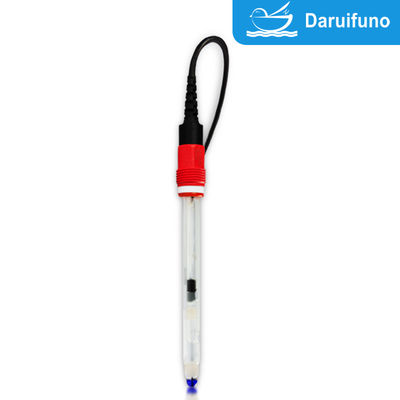

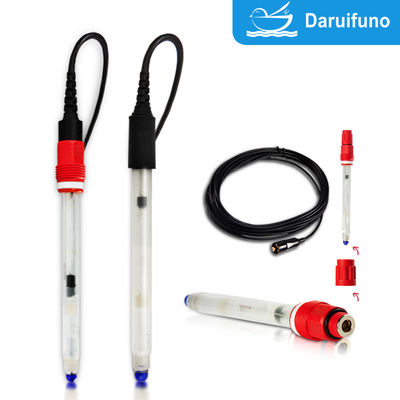

Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

Name: Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable
Brand: Suzhou Delfino Environmental Technology Co., Ltd.
SKU: ASP100E
Price: 137.00 USD
Availability: InStock

Все продукты

анализатор пэ-аш ORP
(48)

регулятор пэ-аш ORP
(39)

датчик пэ-аш ORP
(86)

Анализатор замутненности
(54)

Растворенный анализатор кислорода
(32)

Анализатор проводимости
(49)

Анализатор суспендированных твердых веществ
(25)

Анализатор СОД
(17)

Анализатор хлора
(21)

Анализатор хлорофилла
(21)

Голубой тестер зеленых водорослей
(17)

Анализатор аммиака
(11)

Портативный анализатор
(2)

Анализатор дезинфицирующего средства
(25)

Multi анализатор параметра
(3)

Анализатор качества воды
(32)

Самые лучшие продукты

Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

Большие изображения : Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	Daruifuno
Сертификация:	CE, ISO
Номер модели:	ASP100E

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	USD25-250
Упаковывая детали:	Картон
Время доставки:	3-10 рабочих дней
Условия оплаты:	T/T, Western Union, Moneygram
Поставка способности:	10000 комплектов в месяц

контакт

Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

описание

Название продукта:	Датчик ПЭ-АШ	Измеренный диапазон:	0~14pH
Ноль (E0) ph:	± 0,25 / ч	Слоп%:	＞ 95%
Рабочее давление:	0-4Bar	Рабочая температура:	0~100℃
Блок температуры:	PT100, PT1000, NTC10K на заказ	Проволока:	Стандартные 5 метров
Выделить:	analog pH sensor for sewage , industrial wastewater pH sensor , pH ORP sensor with warranty

Analog PH Sensor For Domestic Sewage Or Industrial Waste Water

Analog PH Sensor With Split Wire For 0~100℃ For Recycled Water Rain Water

The Daruifuno pH sensor ASP100E delivers precise pH measurement across a full range of 0 to 14 pH. Its advanced design features:

Operational and Environmental Capabilities

Engineered for versatile performance in diverse conditions:

Medium-to-low temperature range (0-80°C): Continuous operation at pressures up to 4 bar
High-temperature range (80-100°C): Continuous measurements for up to 30 minutes at 2 bar pressure

Detailed Performance Metrics

Optimal sample flow rate: 0.001 m/s to 0.5 m/s
Zero-point (E0) pH: ±0.25 pH for excellent calibration stability
Slope: Over 95% sensitivity
Temperature compensation options: PT100, PT1000, or customized NTC10K sensor

Installation and Design Flexibility

Standard dimensions: 12mm diameter × 120mm length (custom sizes available)

Installation options: Twist-proof cap or PG13.5 thread
Cable configuration: Integrated or detachable

Specifications

Model	ASP100E	ASP101E	ASR100E
Measuring Object	PH	PH	ORP
Measuring Range	0~14pH	0~14pH	±2000mV
Indicator Electrode	Blue low impedance hemispherical glass membrane	Blue low impedance hemispherical glass membrane	Platinum
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass annular ceramic hole	Glass Dot-shaped ceramic hole	Glass annular ceramic hole
Working Pressure	Medium/low temp: 0-4bar \| High temp: 0-2bar
Working Temp.	Medium/low temp: 0-80℃ continuous \| High temp: 80-100℃ (≤30 min)
Sample Flow Rate	0.001 m/s to 0.5 m/s
Zero (E0) pH	±0.25pH	±0.25pH	±20mV
SLOP%	＞95%		＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: 12mm diameter × 120mm length (customized available)

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs

The ASP100E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.

Applications

The ASP101 pH sensor serves critical monitoring needs across multiple industries:

Water treatment plants: Ensures pH compliance throughout treatment processes
Industrial production: Monitors pH in chemical, pharmaceutical, and food processing
Environmental monitoring: Tracks pH in natural water bodies
Aquaculture: Maintains optimal pond conditions
Aquariums & pools: Protects aquatic life and swimmer safety
Research labs: Supports precise pH measurement in experiments
